Length 5m-25m Marine Rubber Airbags For Ship Launching / Buoyancy Support

Name: Length 5m25m Marine Rubber Airbags For Ship Launching Buoyancy Support
Brand: DOOWIN MARINE
Price: 1 USD

Cheap Length 5m-25m Marine Rubber Airbags For Ship Launching / Buoyancy Support wholesale

Brand Name : DOOWIN MARINE

Model Number : Salvage rubber airbag

Certification : SGS, BV, CCS, ABS, LR

Place of Origin : China

MOQ : 1pc

Price : USD $1000 ~ $6860

Payment Terms : T/T

Supply Ability : 10pcs/per week

Delivery Time : 2~3 weeks

Packaging Details : Pallet or Plywooden Box

Name : Marine Rubber Airbags

Materials : Synthectic tire cord layers

Factory : Leading manufacture in China.

Usuage : Marine salvage,Buoyancy support

Technology : Holistic Wrapping Technology

Logo : Supported

Feature : No Air Leakage, Wearable, Easy Operation

Diameter : 0.8 ~ 3m, or customized diameter

Effective length : 5-25m, or customized length

Usage : Ship launching / landing ,marine salvage

Loading Capacity : 10 ~ 40 ton/m, or customized capacity

Certificates : CCS BV ABS LR etc

Contact Now

Inflatable Salvage Tubes Airbag Floating Salvage Pontoons Marine Rubber Air Lift Bags

Marine salvage and floatation is another application of ship launching marine airbags after update. Doowin Marine marine salvage airbags are designed with lifting belts and shackles equipped on the updated ship launching airbags.

Marine Salvage Airbags are the toughest air lifting bags. It can be used as a salvage pontoon for the supporting docks, and other floating structures. Also can be used to salvage the shipwreck, rescue the floating bridge, and dock construction. With the strongest pneumatic rubber body, salvage rubber airbags really come into their own when airbags employed in heavy-duty salvage work under a severe environment.

Marine Salvage Rubber Airbags Buoyancy Capacity
Marine salvage airbags have different buoyancy capacities as well as performances With numerous combinations of diameters and lengths. Please refer below buoyancy list of standard marine salvage airbags.

Length	D=1m	D=1.2m	D=1.5m	D=1.8m	D=2.0m	D=2.5m	D=3.0m
5m	4t	6t	9t	13t	16t	25t	35t
6m	5t	7t	11t	15t	19t	29t	42t
7m	5t	8t	12t	18t	22t	34t	49t
8m	6t	9t	14t	20t	25t	39t	57t
9m	7t	10t	16t	23t	28t	44t	64t
10m	8t	11t	18t	25t	31t	49t	71t
11m	9t	12t	19t	28t	35t	54t	78t
12m	9t	14t	21t	31t	38t	59t	85t
13m	10t	15t	23t	33t	41t	64t	92t
14m	11t	16t	25t	36t	44t	69t	99t
15m	12t	17t	27t	38t	47t	74t	106t
16m	13t	18t	28t	41t	50t	79t	113t
17m	13t	19t	30t	43t	53t	83t	120t
18m	14t	20t	32t	46t	47t	88t	127t
19m	15t	21t	34t	48t	60t	93t	134t
20m	16t	23t	35t	51t	63t	98t	141t
21m	16t	24t	37t	53t	66t	103t	148t
22m	17t	25t	39t	56t	69t	108t	156t
23m	18t	26t	41t	59t	72t	113t	163t
24m	19t	27t	42t	61t	75t	118t	170t
25m	20t	28t	44t	64t	79t	123t	177t

All Doowin Marine marine salvage airbags are manufactured and insepcted fully compliant with ISO 14409 “Ships and marine technology – ship launching air bags“ and IMCA D016, certificated by CCS, LR, BV.

Why Rubber Marine Salvage Airbags

Rubber marine salvage airbags are made by multilayer heavy-duty synthetic-tire-cord layers. It’s more sturdy and reliability than PVC air lifting bags, what are widely used for the diving or marine salvage industry.

High Buoyancy Capacity
Salvage rubber airbags create high buoyancy capacity with safer air pressure. The buoyancy is 4t~300t.
Worked for Deep Water
Marine salvage rubber airbags can be used for deepwater salvage lifting. Can install safety valves.
Resistant to Abrasion
Salvage rubber air bags have 6~12 plies reinforcement layers to withstand most abrasion and puncture.

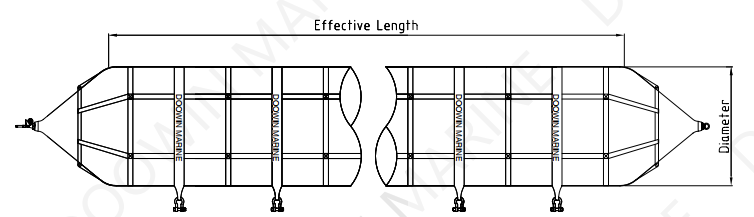

Structure of Marine Salvage Rubber Airbags

Marine salvage airbags are equipped with lifting belts and shackles. For the big size, we also install safety valves. When the inner pressure reaches the rated value, it can open automatically to release the insider air-pressure.

You can choose the required diameter and effective length to meet your projects. The below specification only is our standard specification arrangement. Other specifications marine salvage airbags also can be supplied upon clients’ request. The biggest buoyancy capacity can reach 300ton.

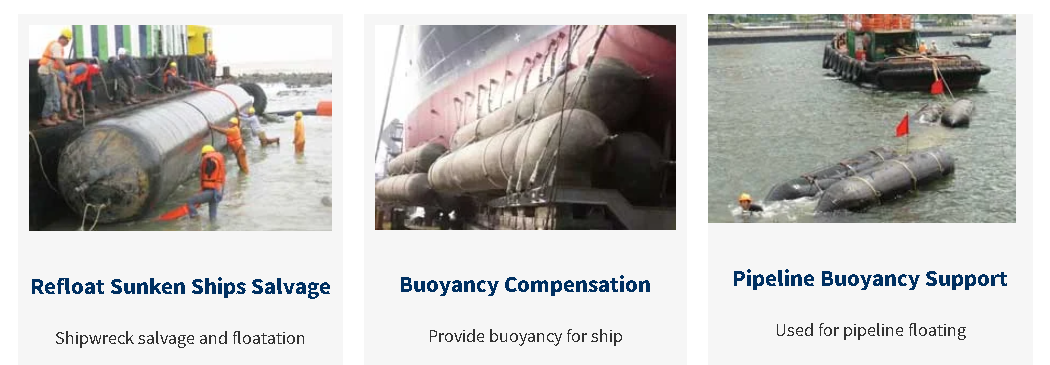

Marine Salvage Airbags Various Application
